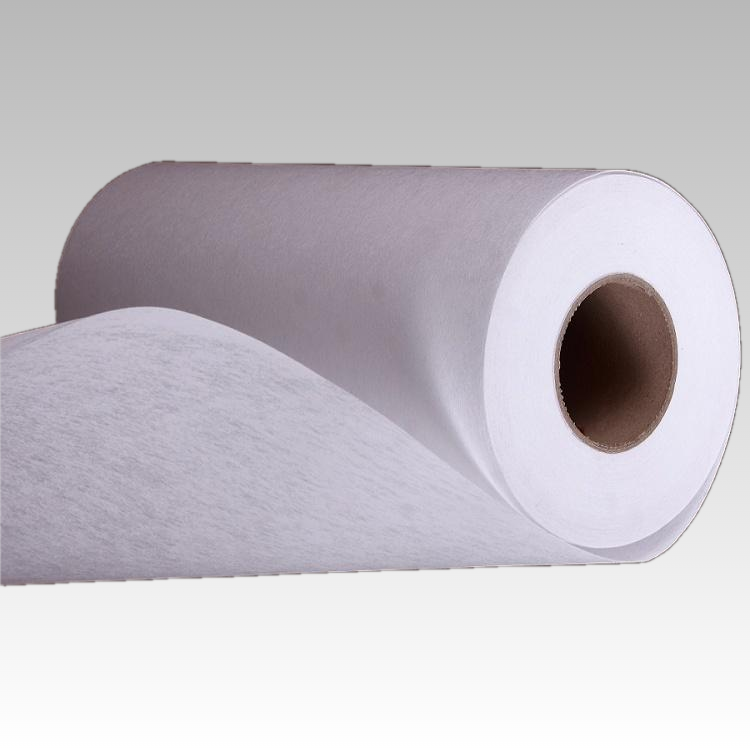

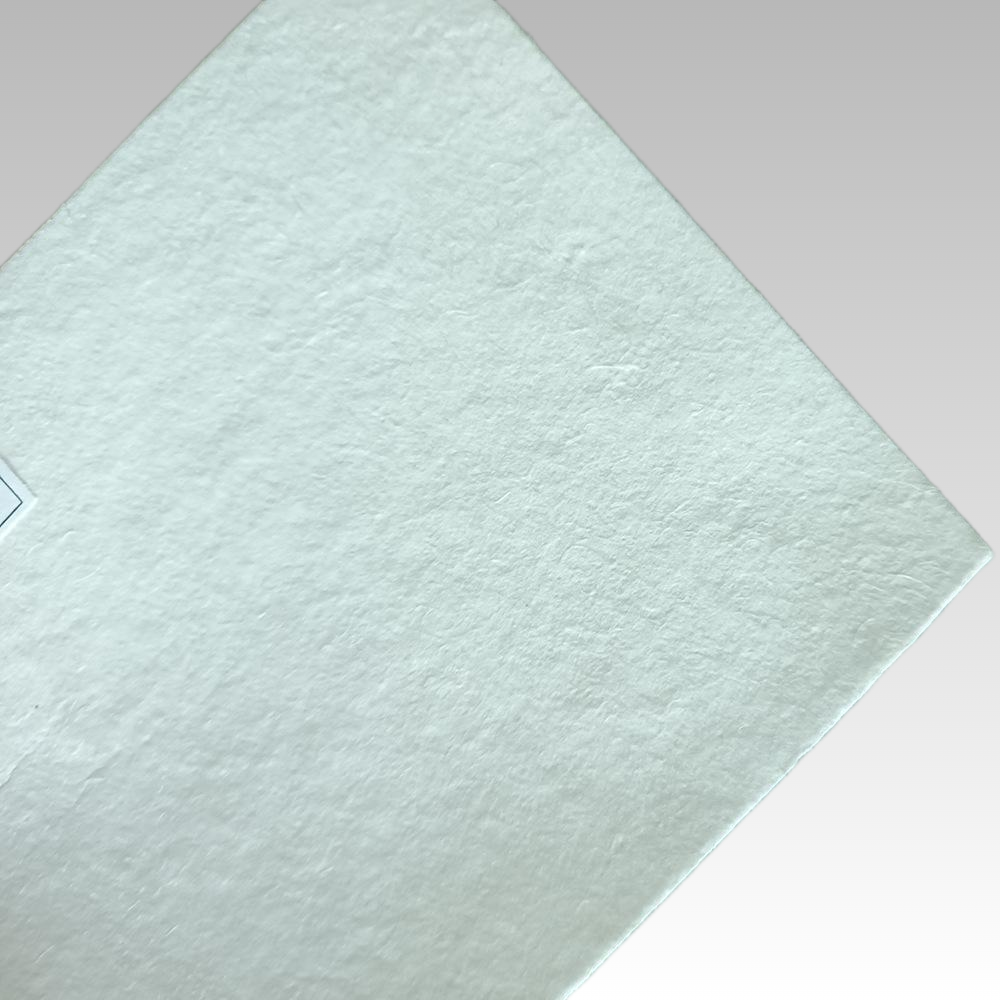

F6 Glass Fiber Filter Paper | Automotive Spray Booth Efficiency
JRS-MF0601 is a low-resistance medium-efficiency filter material for automotive spraying and electronics industries. Made from glass fiber with acrylic ester adhesive, it can be formed into partitioned or non-partitioned F6 filters, optimized for your operating air velocity.
☉ Technical Data
| Unit | Max | Target | Min | Test Method | |
| BASUS WEIGHT | (g/m²) | 80 | 75 | 70 | GBT 451.2-1989 |
| TAPPI 410 om-2002 | |||||
| Thickness (50 kPa) | (mm) | 0.5 | 0.46 | 0.4 | GB/T 451.3-2002(50kpa) |
| TAPPI 411 om-2015(50kpa) | |||||
| @ 5.33 cm/s - 32 L/min | (mm H2O) | 0.3 | 1 | / | ATI-100XP Automated Filter Test |
| (Pa) | 12.7 | 9.8 | |||
| @ 5.33 cm/s - 32 L/min | % | 95 | 85 | / | ATI-100XP Automated Filter Test |
| Air Permeability: | (cfm) | / | 120 | 100 | TAPPI T 251(125pa) |
| TENSILE STRENGTH-MD : | (kN/m) | / | 1.5 | 1.2 | GB/T 12914-2008 (25.4mm/min) |
| TAPPI 494 om-2013(25.4mm/min) | |||||
| TENSILE STRENGTH- CD: | (mg) | / | 0.6 | 0.4 | GB/T 12914-2008 (25.4mm/min) |
| TAPPI 494 om-2013(25.4mm/min) | |||||
| GURLEY SRIFFNESS-MD: | (mg) | / | 1020 | 750 | TAPPIT-543-94 |
| WATER REPELLENCY: | (mm H2O) | / | 205 | 130 | GB/T 4744-2013 |
| (Pa) | 2009 | 1274 | ISO 811.2018 |
