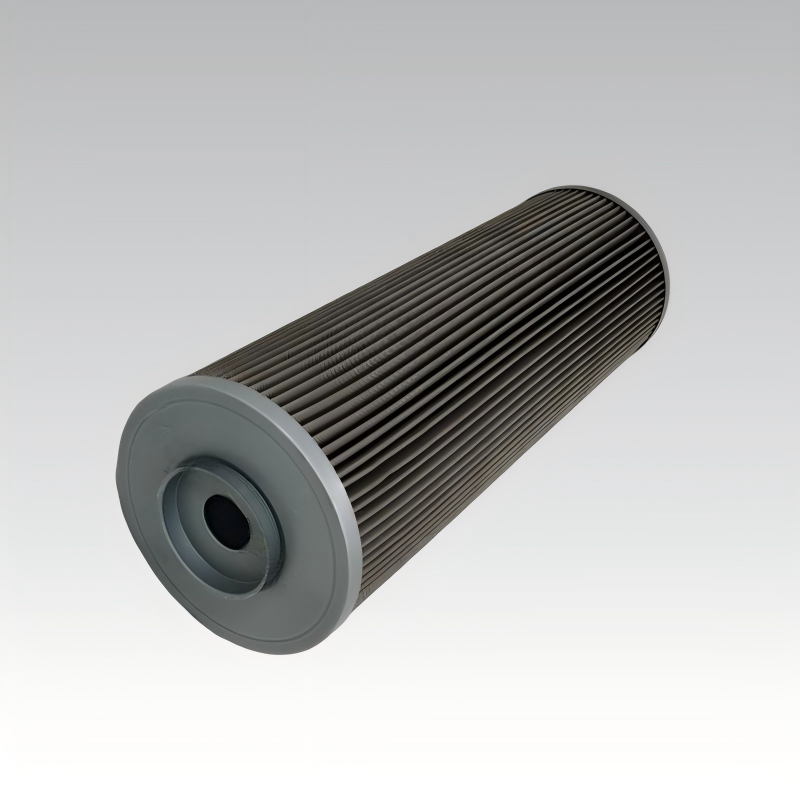

Double-sided 10 μm glass fiber hydraulic oil filter paper JRS-1080SS
For Mobile and Industrial Hydraulic Applications. Market-leading energy savings at all efficiency ranges – JRS hydraulic filter media provides consistent protection while it lowers energy usage and extends the life of system components. The glass media is laminated with polyester scrims on both sides.
- Next: 30μm Glass Fiber Filter Paper
- Prev: Industrial Filter Pad
☉ Technical Data
|
Unit |
Max |
Target |
Min |
Test Method |
|
|
BASIS WEIGHT |
(g/㎡) |
133.0 |
126.0 |
119.0 |
GB/T 451.2-1989 |
|
Thickness (50 kPa) |
(mm) |
/ |
0.550 |
0.500 |
GB/T 451.3-2002 (50kPa) |
|
@5.33 cm/s-32 L/ min |
(mm H20) |
/ |
5.8 |
/ |
ATI-100XP Automated Filter Test |
|
Air Permeability |
(cfm) |
26 |
22.7 |
20 |
TAPPI T 251 (125 Pa) |
|
TENSILE STRENGTH-MD |
(kN/m) |
/ |
2.500 |
1.200 |
GB/T 12914-2008 (25.4 mm/ min) |
|
TENSILE STRENGTH-CD |
(kN/m) |
/ |
1.200 |
0.600 |
GB/T 12914-2008 (25.4mm/ min) |
|
Max. Pore Size |
(μm) |
39 |
34 |
/ |
QC/T 794-2007 |
|
EFFICIENCY(BETA-200) |
(μm) |
/ |
10 |
/ |
ISO 16889(test run to 200kPa) |
|
DUST HOLDING CAPACITY |
(g/㎡) |
/ |
115 |
/ |
ISO 16889 (test run to 200 kPa) |
☉ Application Scenarios
Mobile and industrial hydraulic systems
(including construction machinery, vehicles, hydraulic stations, etc.)
