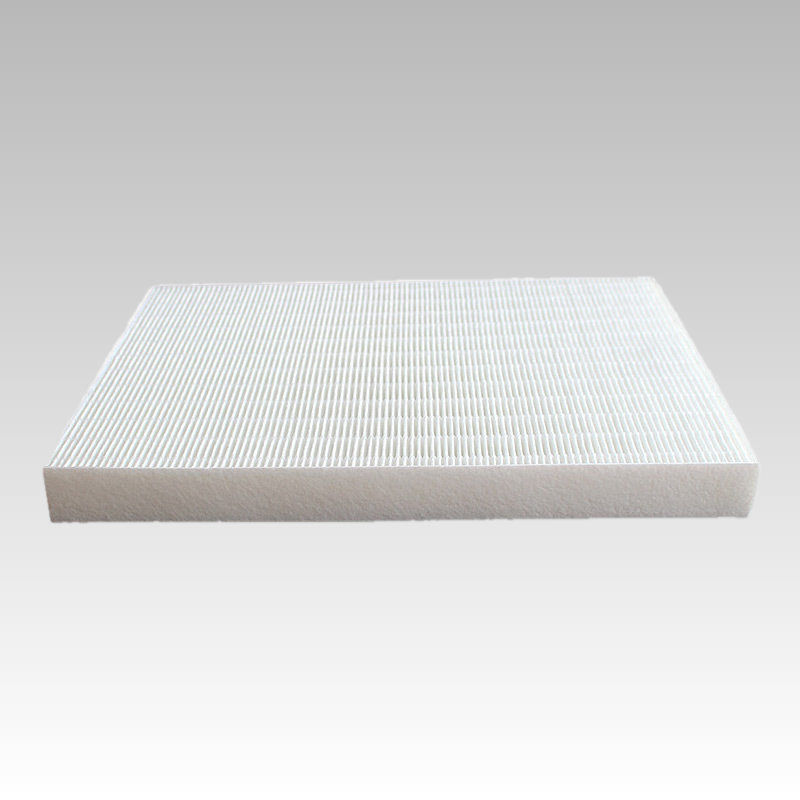

E12/H13 HEPA Air Filtration Media (JRS-MC3526)
JRS-MC3526 is a high-efficiency HEPA filter media engineered for critical air filtration in microelectronic component manufacturing, pharmaceutical processing, and other controlled environment applications.This media is specifically engineered to achieve the highest possible filtration efficiency with minimal pressure drop, ensuring reliable, consistent performance and reduced operational energy costs—key advantages for mission-critical filtration systems.JRS-MC3526 is optimized for mini-pleat and deep-pleat filter configurations, meeting strict E12 and H13 efficiency requirements. It is composed of borosilicate glass fibers bonded with an acrylic binder, delivering excellent mechanical strength and dimensional stability for long-term use.
☉ Technical Data
| Property | Unit | Max | Target | Min | Test Method |
| BASIS WEIGHT | (g/m²) | 80 | 75 | 70 | GB/T 451.2-1989 |
| TAPPI 410 om-2002 | |||||
| Thickness (50 kPa) | (mm) | 0.45 | 0.393 | 0.33 | GB/T 451.3-2002(50kpa) |
| TAPPI 411 om-2015(50kpa) | |||||
| @ 5.33 cm/s - 32 L/min | (mm H2O) | 29 | 26 | / | ATI-100XP Automated Filter Test |
| (Pa) | 284 | 254 | |||
| @ 5.33 cm/s - 32 L/min | % | 0.05 | 0.03 | / | ATI-100XP Automated Filter Test |
| TENSILE STRENGTH-MD : | (kN/m) | / | 1.5 | 1.2 | GB/T 12914-2008 (25.4mm/min) |
| TAPPI 494 om-2013(25.4mm/min) | |||||
| TENSILE STRENGTH- CD: | (kN/m) | / | 0.6 | 0.4 | GB/T 12914-2008 (25.4mm/min) |
| TAPPI 494 om-2013(25.4mm/min) | |||||
| GURLEY SRIFFNESS-MD: | (mg) | / | 1020 | 800 | TAPPIT 543 om-2005 |
| WATER REPELLENCY: | (mm H2O) | / | 1020 | 640 | GB/T 4744-2013 |
| (Pa) | 9996 | 6272 | ISO 811-2018 |
☉ Application Scenarios
1. Clean farms.
2. Aerospace field.
3. Biopharmaceutical engineering.
4. Dust-free purification workshop.
5. Laboratories and clean rooms.
