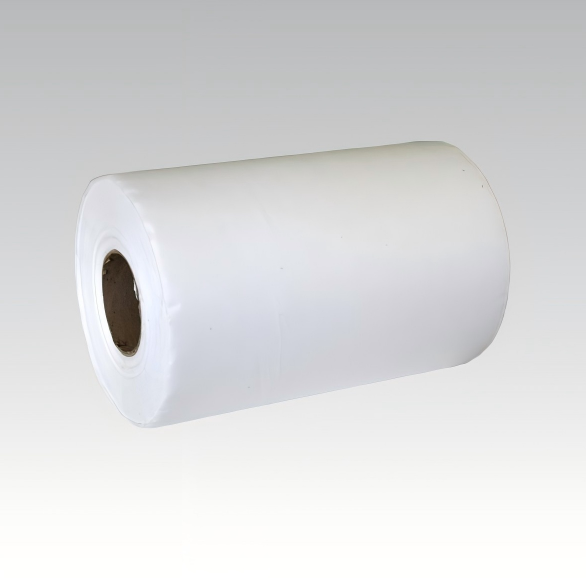

H13/H14 Low Resistance Glass Fiber Filter Media

Developed for the electronics, biomedical, and related high-purity industries, JRS-MB3829 is a low-resistance HEPA filter media featuring a core composition of ultra-fine glass fiber reinforced with acrylic adhesive. The material’s optimized fiber structure ensures high filtration efficiency at reduced pressure drop, delivering energy-efficient performance. Depending on filter construction design and operational air velocity, it is suitable for producing both separator-type and minipleat (separator-free) H13 and H14 grade HEPA filters, meeting stringent cleanroom and high-purity application requirements.

CONTACT NOW

Next: Glass Fiber Media H11
Prev: E12/H13 HEPA Air Filtration Media (JRS-MC3526)

☉ Technical Data

	Unit	Max	Target	Min	Test Method
BASIS WEIGHT	(g/m²)	80.0	75.0	70.0	GB/T 451.2-1989 TAPPI 410 om-2002
Thickness (50 kPa)	(mm)	0.450	0.393	0.330	GB/T 451.3-2002(50kpa) TAPPI 411 om-2015(50kpa)
@ 5.33 cm/s - 32 L/min	(mm H2O) (Pa)	32.0 313.0	29.5 289.0	/ /	ATI-100XP Automated Filter Test
@ 5.33 cm/s - 32 L/min	%	0.0300	0.0150	/	ATI-100XP Automated Filter Test
TENSILE STRENGTH-MD	(kN/m)	/	1.500	1.200	GB/T 12914-2008 (25.4mm/min) TAPPI 494 om-2013(25.4mm/min)
TENSILE STRENGTH- CD	(kN/m)	/	0.60	0.40	GB/T 12914-2008 (25.4mm/min) TAPPI 494 om-2013(25.4mm/min)
GURLEY SRIFFNESS-MD	(mg)	/	1020	800	TAPPIT 543 om-2005
WATER REPELLENCY	(mm H2O) (Pa)	/ /	1020 9996	640 6272	GB/T 4744-2013 ISO 811-2018

☉ Application Scenarios

1. Dust-free purification workshop.
2. Laboratories and clean rooms.
3. Clean farms.
4. Aerospace field.
5. Biopharmaceutical engineering.
