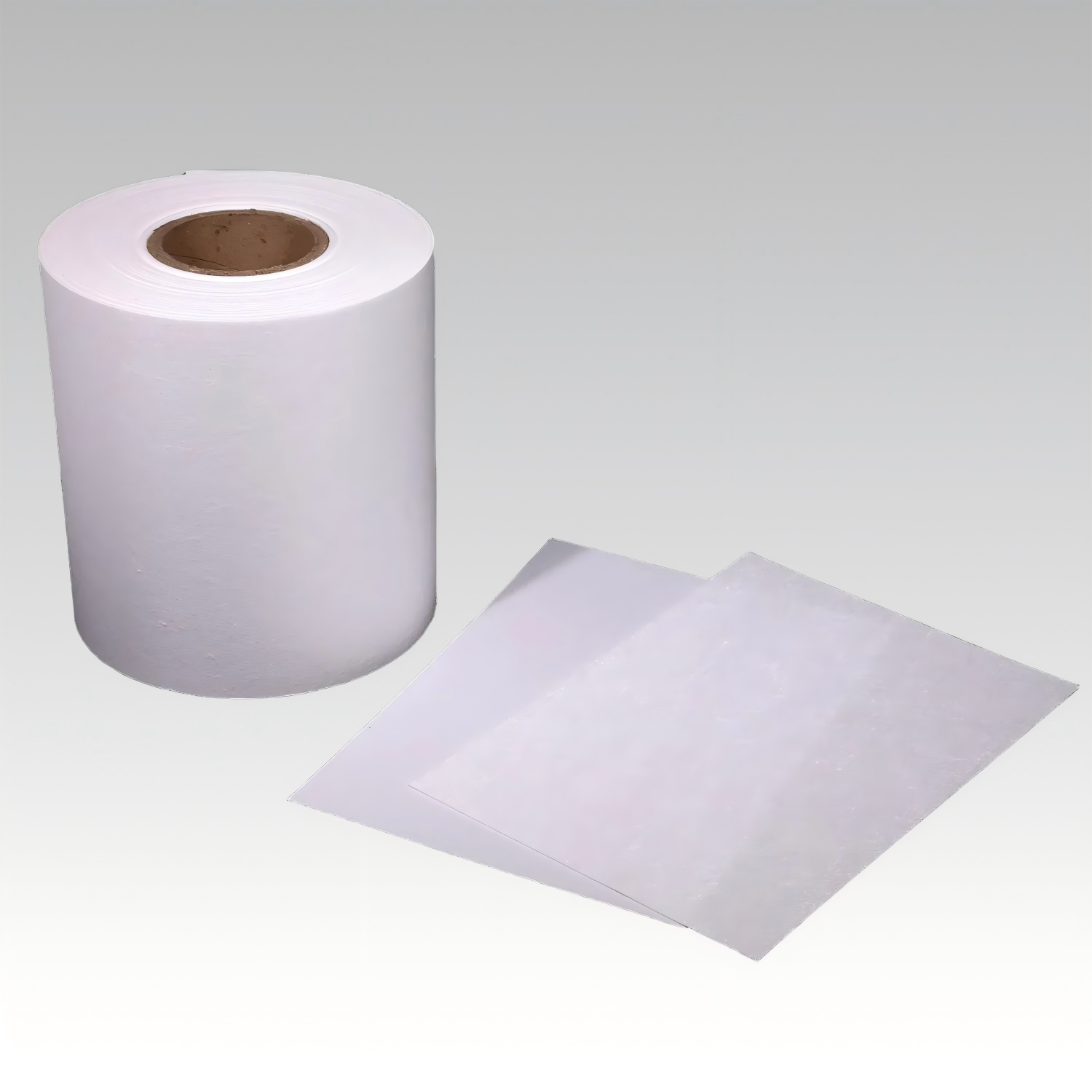

Glass Fiber Media H11

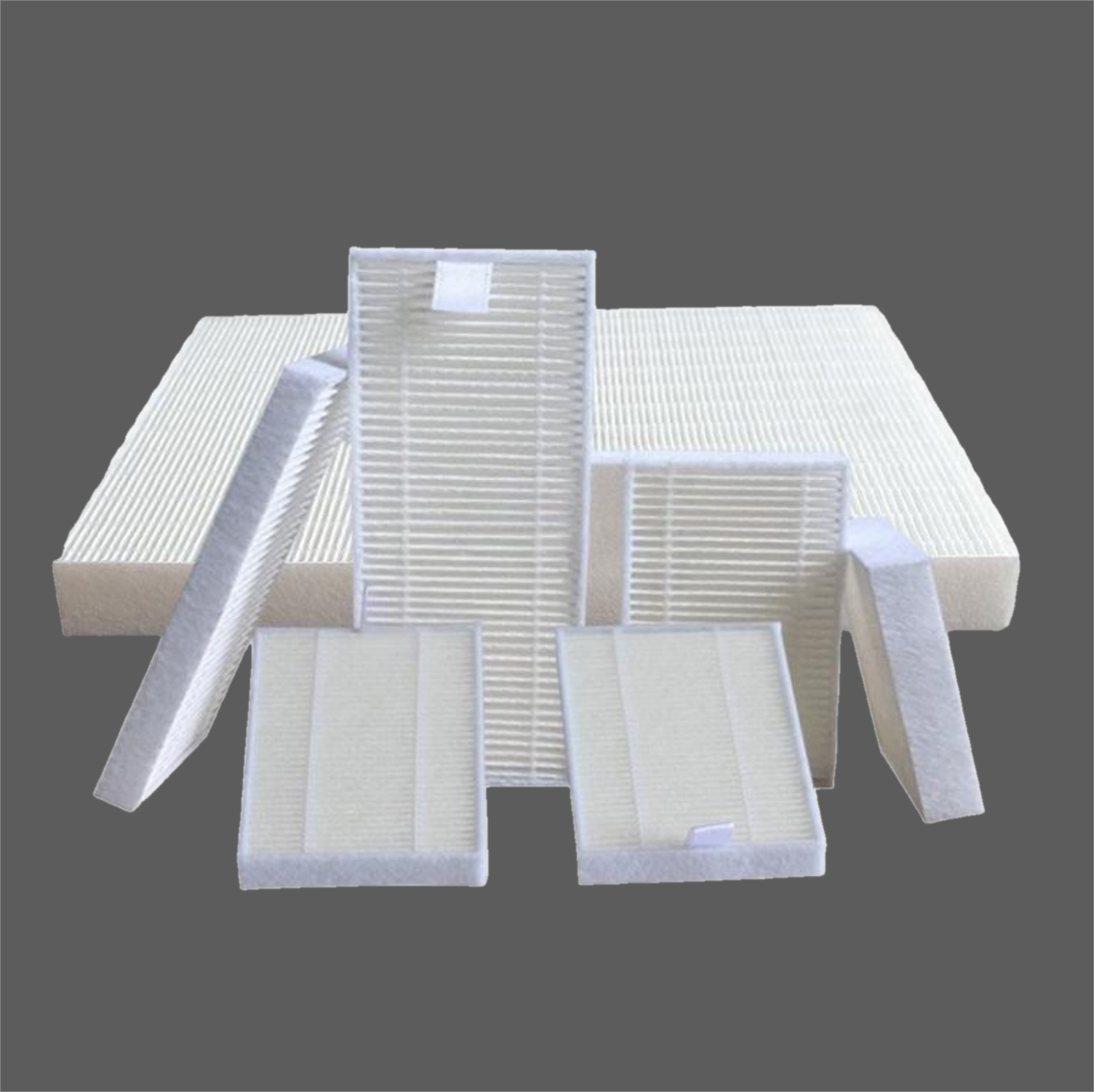

JRS-MD1716 air filtration media is designed for microelectronics manufacturing, assembly, pharmaceutical processing and other clean applications. It delivers high filtration efficiency with low air resistance, ensuring stable performance and lower energy consumption. Engineered for H11 efficiency in mini‑pleat and deep‑pleat filters, it is made of borosilicate glass fibers with acrylic binder.

CONTACT NOW

Next: Industrial Filter Pad
Prev: H13/H14 Low Resistance Glass Fiber Filter Media

☉ Technical Data

Property	Unit	Max	Target	Min	Test Method
BASIS WEIGHT	(g/m²)	80.0	75.0	70.0	GB/T 451.2-1989 TAPPI 410 om-2002
Thickness (50 kPa)	(mm)	0.450	0.393	0.330	GB/T 451.3-2002(50kpa) TAPPI 411 om-2015(50kpa)
@ 5.33 cm/s - 32 L/min	(mm H2O) (Pa)	18.0 176.0	16.0 157.0	/	ATI-100XP Automated Filter Test
@ 5.33 cm/s - 32 L/min	%	5.000	3.000	/	ATI-100XP Automated Filter Test
TENSILE STRENGTH-MD	(kN/m)	/	1.500	1.200	GB/T 12914-2008 (25.4mm/min) TAPPI 494 om-2013(25.4mm/min)
TENSILE STRENGTH- CD	(kN/m)	/	0.600	0.400	GB/T 12914-2008 (25.4mm/min) TAPPI 494 om-2013(25.4mm/min)
GURLEY SRIFFNESS-MD	(mg)	/	1020	800	TAPPIT 543 om-2005
WATER REPELLENCY	(mm H2O) (Pa)	/	760 7448	510 4998	GB/T 4744-2013 ISO 811-2018

☉ Application Scenarios

1. Dust-free purification workshop.
2. Laboratories and clean rooms.
3. Clean farms.
4. Aerospace field.
5. Biopharmaceutical engineering.
